Description

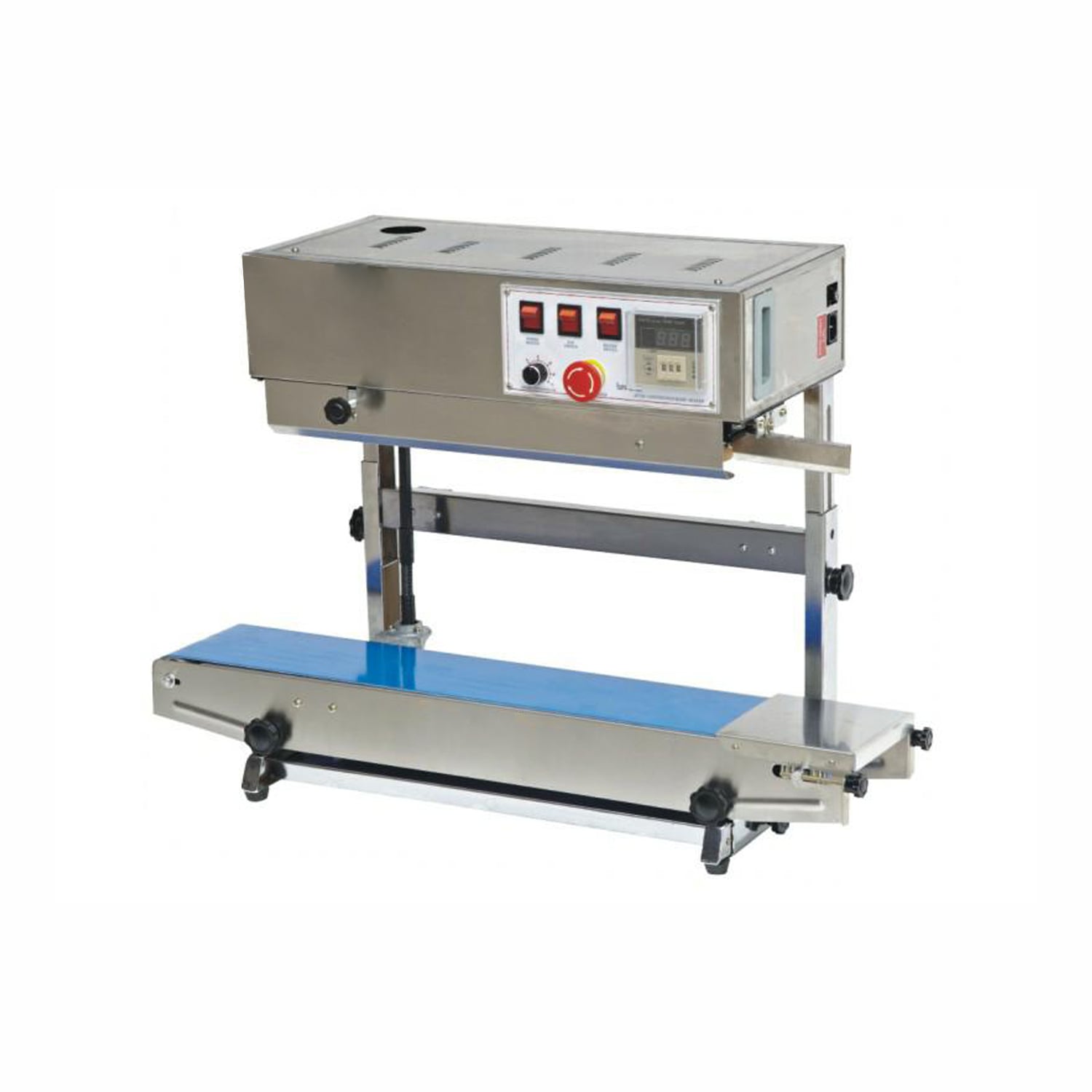

The TT-Z504 Continuous Band Sealer secures plastic packaging for food storage and retail display. This machine seals thermoplastic films continuously, allowing kitchen staff to package ingredients rapidly. It handles various bag materials, ensuring airtight closures for dry goods, sauces, and pre-portioned meals. The vertical bar stand design fits onto worktables, keeping the operation at an ergonomic height for the user.
| Model | TT-Z504 |
| Power supply | 110v, 220-240v / 50-60Hz 1 Phase |
| Power consumption | 500W |
| Sealing speed | 0-12m/min |
| Sealing width | 6-15mm |
| Sealing film thcikness | 0.02-0.08mm |
| Temperature range | 0-300℃ |
| Printing letters | 1 lines 15 letters( steel pressing wheel printing) |
| Conveyor loading | 5kg |
| Machine size | 900x420x660mm |
| Machine weight | 42kg |
Adjustable Conveyor Speed
The 500W motor drives the conveyor belt at speeds between 0 and 12 meters per minute. Operators adjust the dial to match the workflow, whether sealing individual sample bags or processing bulk orders of spices. This variable speed control prevents bottlenecks during high-volume packaging shifts and ensures consistent throughput.
Precise Temperature Control
An electronic thermostat regulates heat from 0 to 300°C. This range accommodates different film thicknesses from 0.02mm to 0.08mm. Kitchens can switch between thin PE bags for fresh vegetables and thicker foil pouches for coffee beans without compromising seal integrity. The heating blocks maintain steady temperatures to prevent melted or weak seals.
Wide 15mm Seal
The machine produces a seal width between 6mm and 15mm. A wider seal prevents leaks, especially when packaging liquids or heavy powders. The knurled wheel design presses a strong texture into the seal, ensuring the package remains closed during transport and storage. This secure closure protects food from moisture and contamination.
Integrated Date Printing
The steel pressing wheel prints up to 15 letters on the seal line in a single pass. Staff can mark production dates, batch numbers, or expiration codes directly onto the bag while sealing. The conveyor supports loads up to 5kg, moving filled bags steadily through the heating, cooling, and printing stages without manual holding.
Why Choose Us?
This bar stand film wrapping machine provides a reliable packaging solution for commercial food production. It combines sealing, conveying, and printing into one unit, reducing manual labor. The TT-Z504 supports consistent output for restaurants, delis, and food manufacturers requiring professional bag closure.
