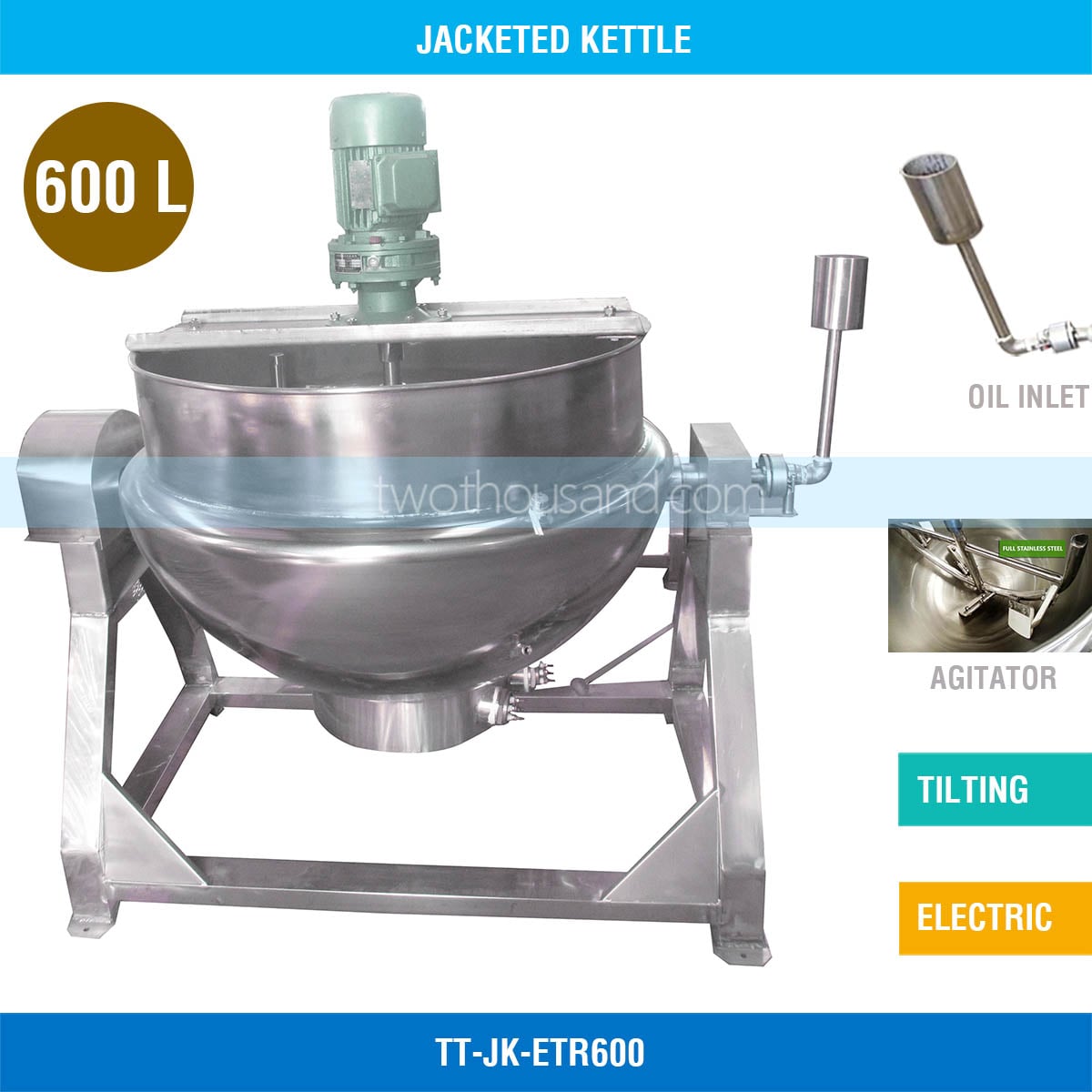

    600L Dia. 1200mm with Agitator Electric Tilting Jacketed Kettle TT-JK-ETR600

    600L Dia. 1200mm with Agitator Electric Tilting Jacketed Kettle TT-JK-ETR600

    Previous / Next

    < >
    Capacity 600 Liter; Heating by Electric; Media by Oil
    Sign in to see price.
    Description

    Details



    Electric Tiltable jacketed kettle
    Heating source: Electric
    Heating media: Conduction oil
    Kettle material: 3-4 MM stainless steel 304
    Kettle capacity: 600 L
    Diameter of pot: 1200 mm
    Height of pot: SR600 + 130 mm


    The commercial jacketed kettle is also known as a steam pan, a cooking pot. It is widely used in the processing of all kinds of food like candy, pharmaceutical, dairy, liquor, pastries, beverages, halogen. It can be used in large restaurants or canteen soup, cooking, stew, porridge, etc., to improve the quality, shorten the time, improve labor conditions. And we have different models available to cater for larger and smaller recipes.

    They are usually composed of pot body and feet. The pot body is a double-layer structure consisting of an inner and outer spherical pot body. They typically have the tilting style and fixed style for this machine. And according to the heating source, there are four kinds of the jacketed kettle, electric jacketed kettle, steam jacketed kettle, gas jacketed kettle, and the induction jacketed kettle.

    The jacketed kettle has the characteristics of the large heating area, high heating efficiency, uniform heating, short heating time of liquid, easy control of the heating temperature, elegant appearance, easy installation, and operation, safe and reliable.


    More Details about the Jacketed Kettle



    Heating Element


    Heating Element


    Pressure Value - Pressure Valve to monitor the inside pressure


    Pressure Value - Pressure Valve to monitor the inside pressure


    Drain Valve - The Drain valve to drain the oil or steam


    Drain Valve - The Drain valve to drain the oil or steam


    Oil Inlet


    Oil Inlet


    Drain Outlet - Drain the oil from this outlet


    Drain Outlet - Drain the oil from this outlet


    Optional Motor Tilting Function


    .Optional Motor Tilting Function


    Lock Pin - Lock the bowl to avoid tilting during working


    Lock Pin - Lock the bowl to avoid tilting during working


    Cutting Pipe


    Cutting Pipe


    Assembling Line


    Assembling Line


    Full Stainless Steel 304 material


    Full Stainless Steel 304 material


    Stretching Bowl


    Stretching Bowl


    Pressing - We press the bowl in our factory


    Pressing - We press the bowl in our factory






    Additional Information

    Additional Information

    Name 600L Dia. 1200mm with Agitator Electric Tilting Jacketed Kettle TT-JK-ETR600
    SKU TT-JK-ETR600
    Approval Without CE
    Agitator With Agitator
    Kettle Size Ø1200*130 mm
    Kettle Tilting
    Clearance No
