Description

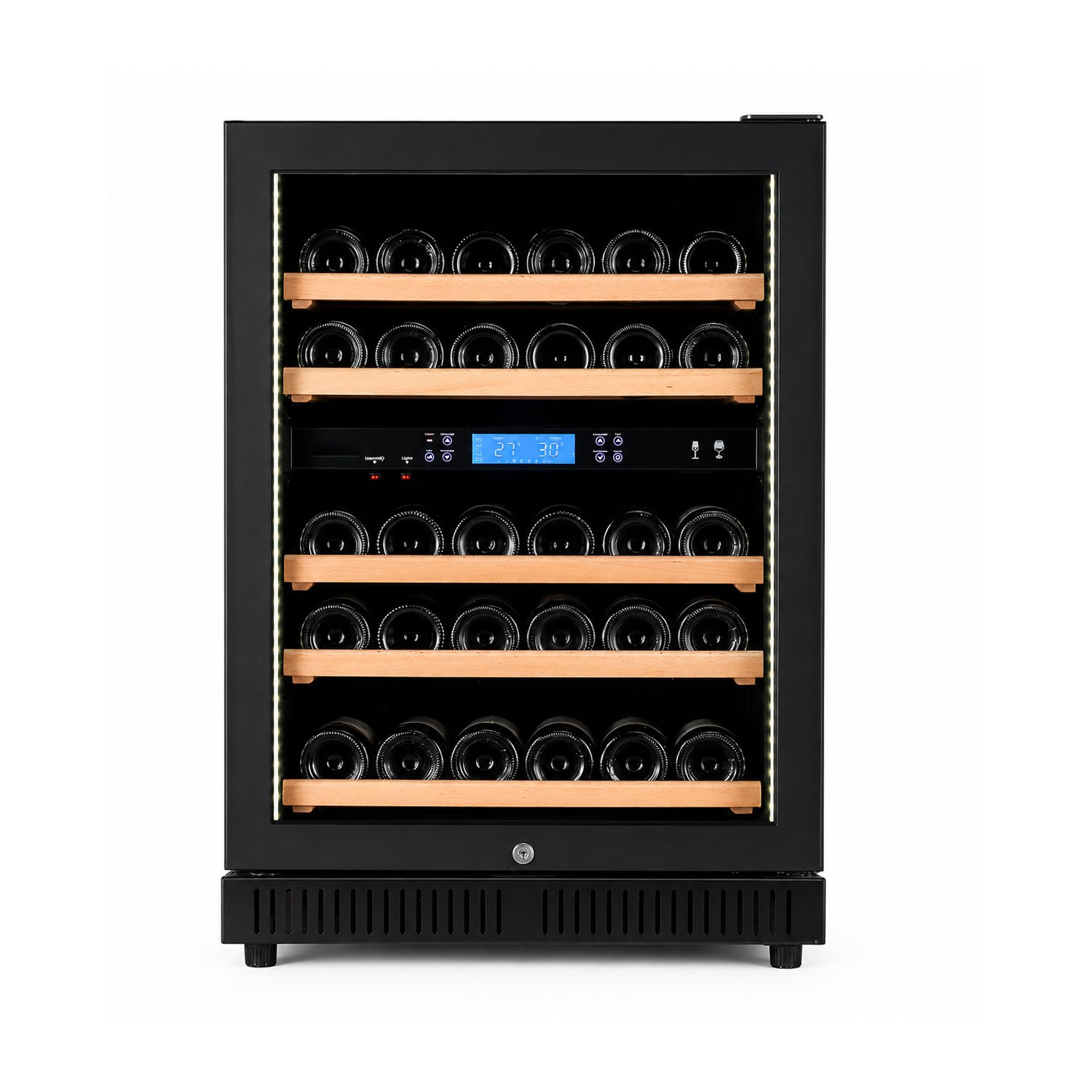

The TT-H46D wine cooler provides a 135L storage capacity for 46 bottles, designed for professional beverage service. This unit maintains precise climate control to preserve wine quality in busy restaurant environments. Its compact dimensions allow for installation under counters or as a standalone unit, ensuring your wine selection remains accessible during service hours.
| Model | TT-H46D |
| Net Capacity | 135 L |
| Storage Capacity | 46 Bottles |
| Rated Voltage/Frequency | 220–240V / 50Hz |
| Power Input | 90 W |
| Temperature Range | 5–12°C (Upper), 12–22°C (Lower) |
| Cabinet Humidity | ≥60% RH |
| Control Mode | Computerized Control with LCD Touchscreen |
| Cooling System | Jiaxipera Compressor, R600a Refrigerant |
| Interior Lighting | LED Lighting |
| Product Dimensions | 595 × 600 × 860 mm |
| Packing Dimensions | 650 × 665 × 900 mm |
| Weight/Gross Weight | 46 kg/49 kg |
Beech Wood Shelving
The thick beech wood shelves provide sturdy support for wine bottles and allow organized storage across multiple levels. Their open design makes it easy to view and access the collection. Display-style wine shelves and cup-hanging racks are available as optional configurations.
Jiaxipera Compressor
The cooler uses a Jiaxipera compressor with R600a refrigerant to support efficient and stable refrigeration. This cooling system works with the computerized temperature controls to maintain the selected storage conditions for different wines. R600a is a fluorine-free refrigerant with zero ozone depletion potential.
Dual-Side LED Lighting
LED lights installed on both sides illuminate the cabinet interior, making bottle labels and shelves easier to see. Choose from seven lighting colors and adjust the brightness to suit the surrounding décor or display requirements. The lighting adds flexibility for wine presentation in restaurants, bars, and hospitality settings.
Fan-Assisted Cooling
Internal fans circulate cool air throughout the cabinet to help reduce temperature differences between shelf levels. The airflow promotes more even cooling around stored bottles and supports a consistent interior environment. This is especially useful when the cabinet holds wine across several shelves.
Dual Temperature Zones
Dual temperature zones allow you to store white wines at 5–12°C and red wines at 12–22°C simultaneously. This independent control ensures each bottle reaches the correct serving temperature for your guests.
Computerized Control
The computerized LCD touchscreen allows staff to adjust settings quickly. You can monitor internal conditions at a glance, reducing the time spent on inventory management.
Stable Cooling Performance
The Jiaxipera compressor and R600a refrigerant provide stable cooling performance. This system maintains a consistent internal humidity of at least 60% RH, which prevents corks from drying out.
UV Protection
The double-layer brown glass door blocks harmful UV light that can degrade wine flavor. The black PVC frame provides a durable seal, keeping the cold air inside.
Our Wine Coolers Production Facilities
Why Choose Us?
This wine cooler offers a reliable solution for restaurants and bars that require consistent storage for their wine inventory. Its combination of dual-zone cooling, UV protection, and precise digital controls helps you maintain the quality of your stock while streamlining your beverage service operations.
