Description

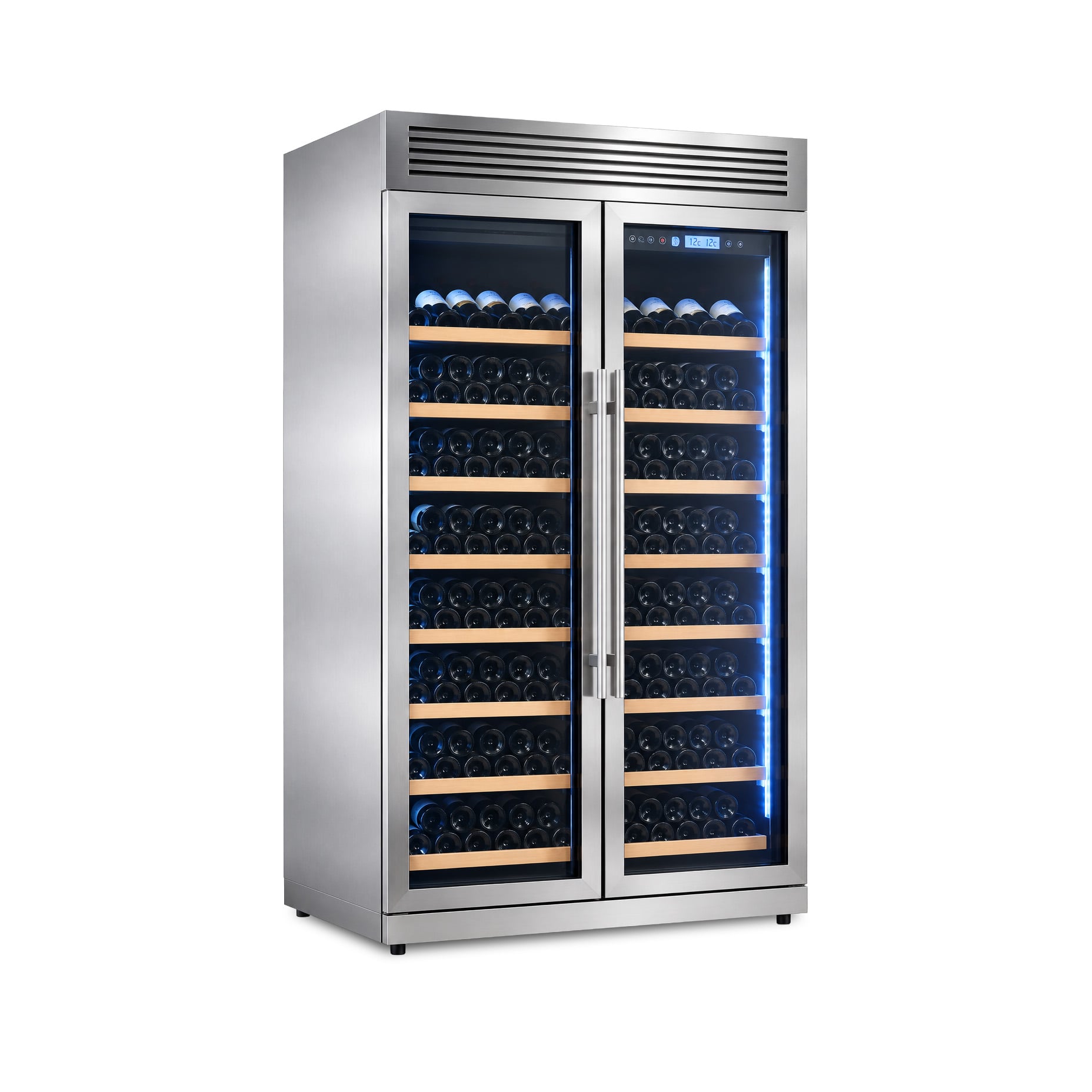

The TT-H320SW wine cooler provides a stable environment for large-scale wine storage. With an 860L capacity, this unit secures up to 320 bottles, making it a reliable choice for restaurants and hotels that manage extensive wine lists. The black titanium finish integrates into professional bar areas while the computerized control system maintains precise conditions for long-term aging or service readiness.
| Model | TT-H320SW |
| Net Capacity (Liter) | 860 L |
| Storage Capacity | Direct Cooling: 320 bottles / Fan Cooling: 280 bottles |
| Rated Voltage/Frequency | 220-240V / 50Hz |
| Power Input | 145 W |
| Temperature Range | 5-22 ℃ |
| Humidity (Inside Cabinet) | 60 percent RH or higher |
| Mode of Control | Computerized with LCD Touch Screen |
| Cooling System | Jiaxipera Compressor and R600a Refrigerant |
| Cabinet Shell Color | silver stainless steel |
| Interior Lighting | Dual-side LED lighting; 7 colors; adjustable brightness |
| Dimensions | 980 x 680 x 1980 MM |
| Weight/Gross Weight | 154 Kg / 162 Kg |

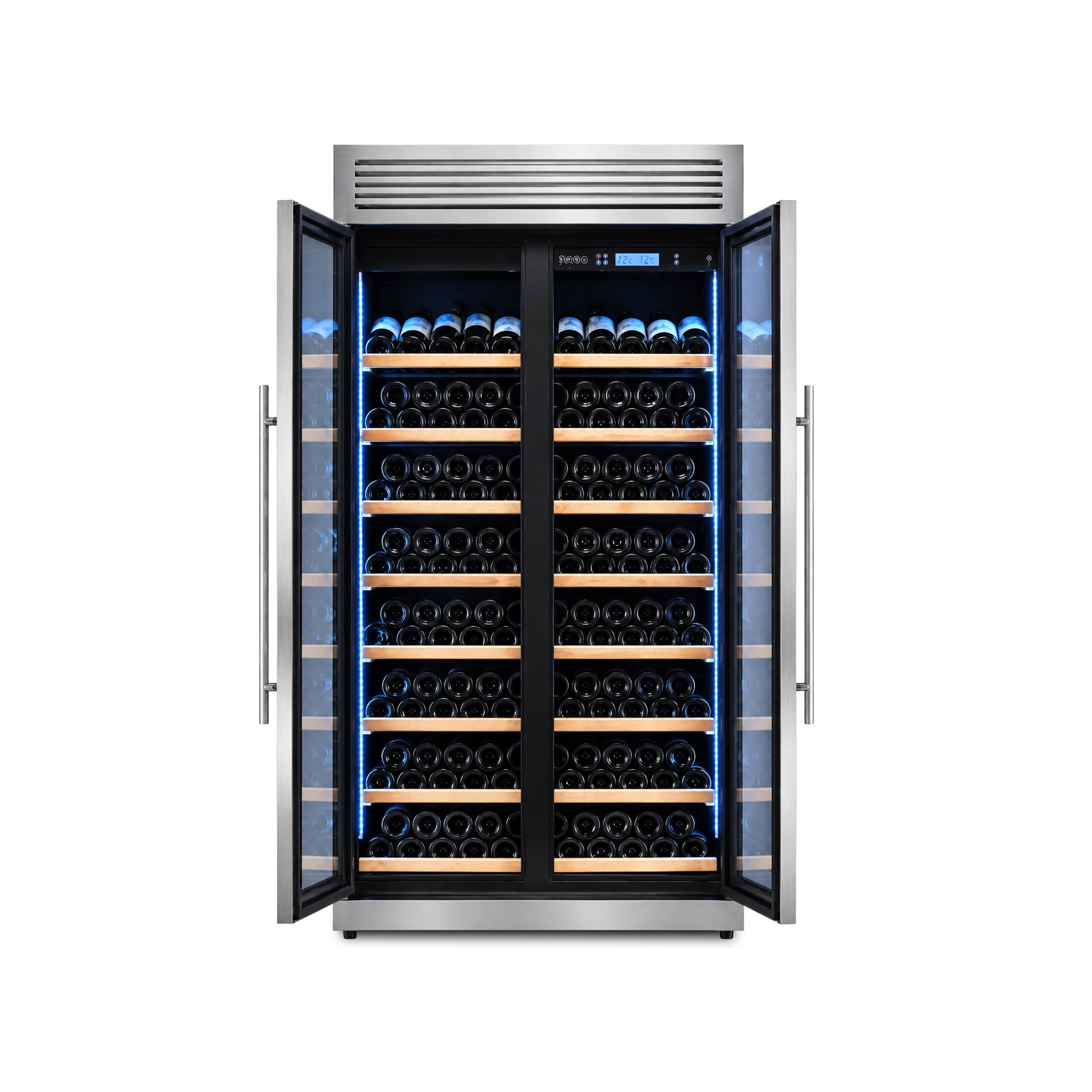

Beech Wood Shelving
Imported beech wood shelves feature a sturdy, thick construction designed to support multiple layers of wine bottles. The wooden racks help organize bottles securely and make individual selections easier to access. Display-style wine shelves and cup-hanging racks are available as optional configurations, allowing the cabinet interior to suit different storage and presentation needs.
Jiaxipera Compressor
The wine cooler is equipped with a Jiaxipera compressor and R600a refrigerant for reliable temperature control. R600a is a fluorine-free refrigerant with zero ozone-depletion potential. The compressor-based cooling system helps maintain the selected temperature range of 5–22°C, supporting consistent wine storage in commercial environments.
Dual-Side LED Lighting
Interior LED lights are installed on both sides of the cabinet to illuminate the stored bottles and improve visibility. Users can select from seven lighting colors and adjust the brightness to complement different displays or ambient lighting conditions. This flexible lighting arrangement makes it easier to showcase wine collections in restaurants, bars, hotels, and retail spaces.
Fan-Assisted Cooling
The built-in fan circulates cooled air throughout the cabinet, helping reduce temperature differences between shelves and storage areas. This airflow supports more even temperature distribution around the bottles and assists in maintaining consistent internal storage conditions.
Large Storage Capacity
The 860L interior holds 320 bottles using direct cooling, allowing managers to stock high volumes of inventory in a single footprint. This reduces the need for multiple smaller units and keeps the entire collection accessible in one location.
Precise Temperature Control
The adjustable 5-22 C range allows you to set the temperature required for specific varietals. Whether storing white or red wines, the system maintains the selected climate to support consistent storage conditions.
Stable Humidity Levels
The internal environment maintains humidity at 60 percent RH or higher. This helps prevent corks from drying out and shrinking, supporting proper bottle sealing during extended storage.
Professional Cooling System
Equipped with a Jiaxipera compressor and R600a refrigerant, the unit maintains consistent internal temperature conditions. LED lighting provides clear interior visibility for bottle identification during service without adding significant heat inside the cabinet.

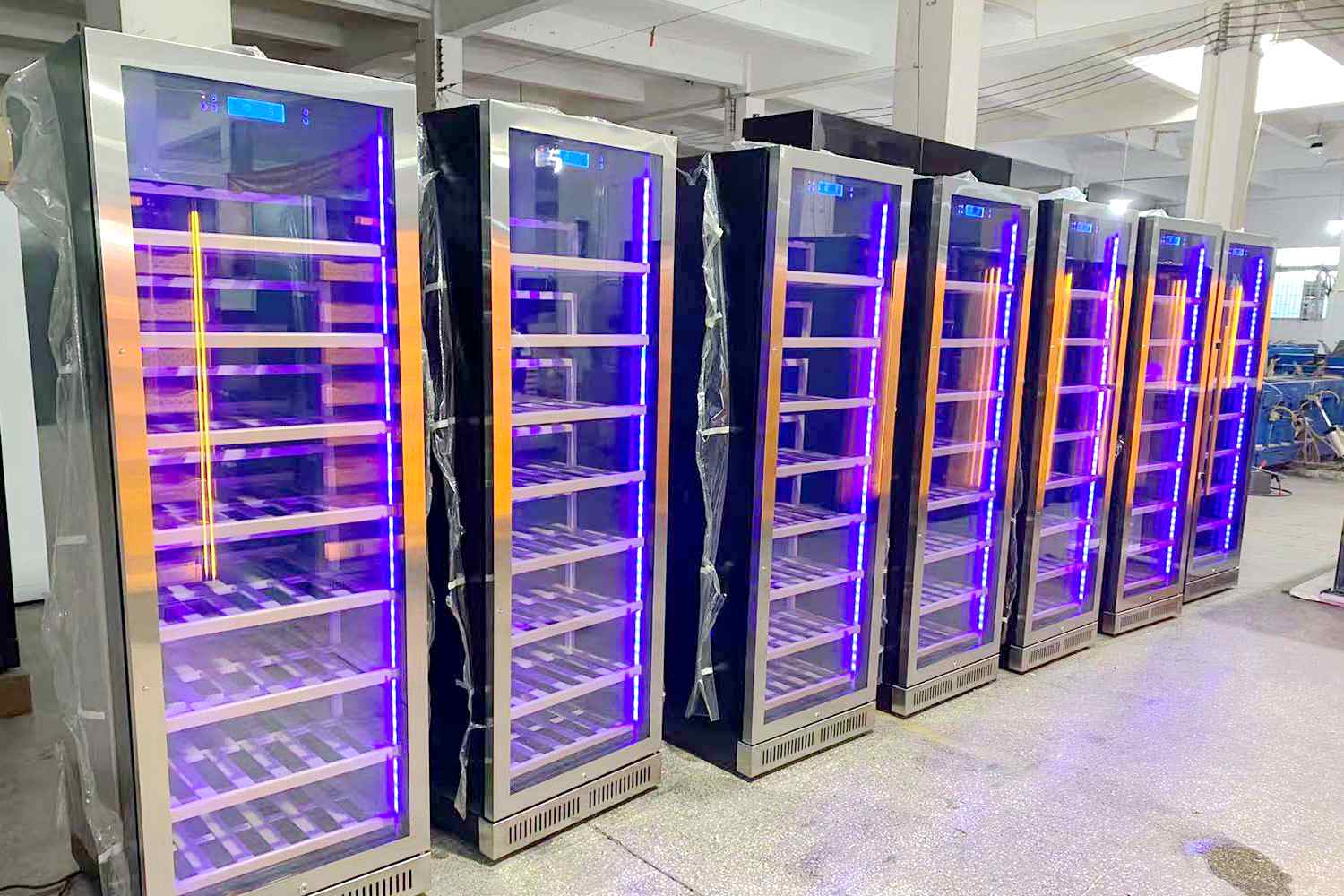

Our Wine Coolers Production Facilities
Why Choose Us?
The TT-H320SW wine cooler provides high-capacity storage and stable climate control for professional beverage operations. Its 860L interior, computerized controls, and cooling system support organized wine storage in restaurants, hotels, bars, and other hospitality environments.
