Description

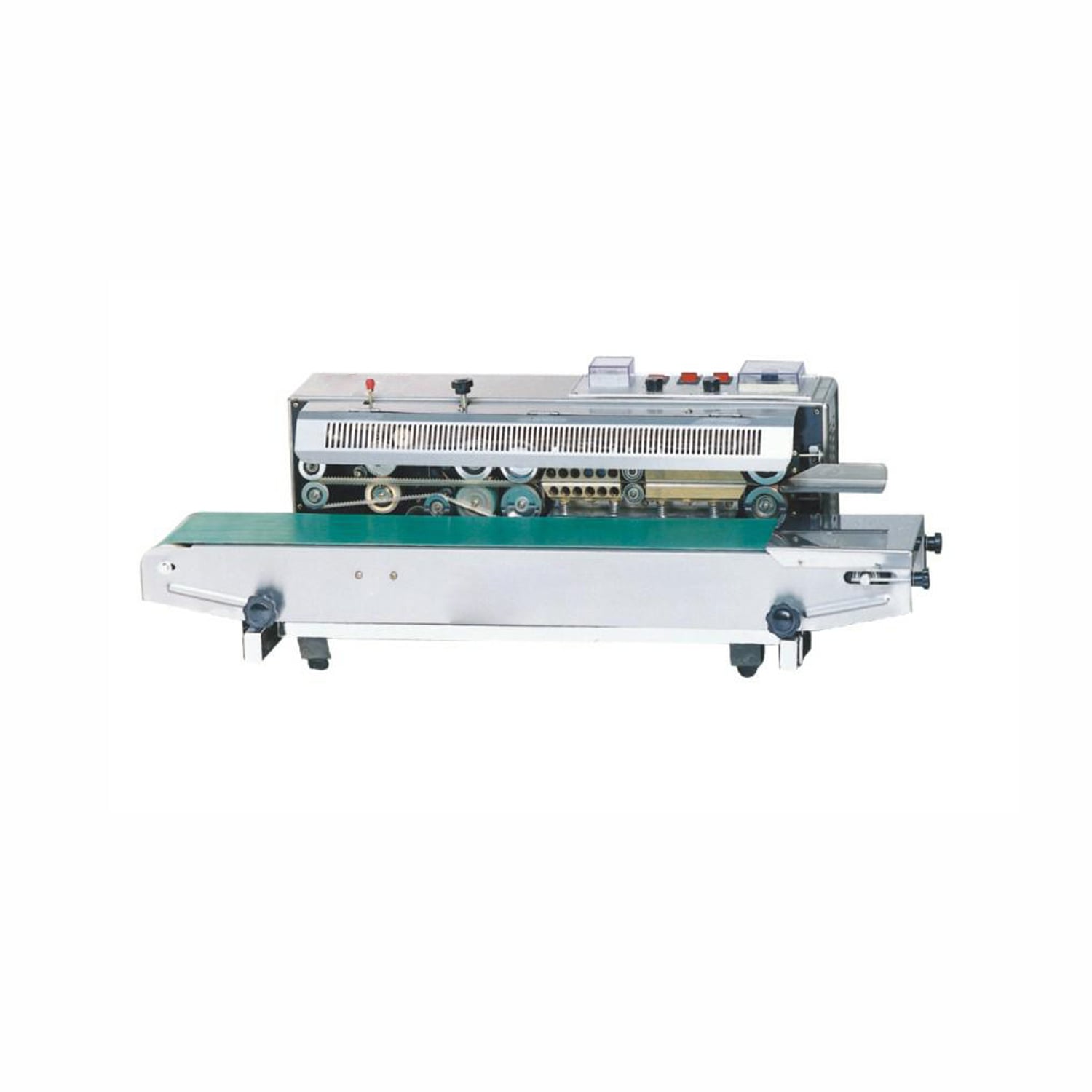

The TT-Z506 Continuous Band Sealer secures bags for food preservation and retail display. This tabletop unit seals thermoplastic films continuously, making it suitable for packaging coffee beans, snacks, and liquid sauces. It combines sealing and date printing in one pass, streamlining the packaging line for small to medium-sized kitchens.
| Model | TT-Z506 |
| Power supply | 110v, 220-240v / 50-60Hz 1 Phase |
| Power consumption | 600W |
| Sealing speed | 0-13m/min |
| Sealing width | 6-15mm |
| Sealing film thcikness | 0.02-0.08mm |
| Temperature range | 0-300℃ |
| Printing letters | 2 lines 30 letters with inker |
| Conveyor loading | 5kg |
| Machine size | 950x400x660mm |
| Machine weight | 45kg |
Adjustable Speed and Temperature
The conveyor moves at speeds up to 13 meters per minute, allowing operators to seal hundreds of bags per hour. An electronic thermostat controls the temperature between 0 and 300℃, maintaining a consistent melt on materials like PE, PP, and aluminum foil. The 6-15mm seal width creates a strong barrier against air and moisture, protecting dry goods and powders during storage.
Integrated Date Coding
This machine prints production dates, expiration dates, or batch numbers directly onto the seal line using solid ink. The print wheel holds two lines of text with up to 30 characters, eliminating the need for separate labeling equipment. The ink dries instantly and remains legible even in cold storage environments, helping kitchens meet food safety regulations.
5kg Capacity Conveyor
The 600W motor drives a durable conveyor belt that supports bags weighing up to 5kg. This capacity suits bulk ingredients such as rice, flour, or frozen meats. The belt moves smoothly to prevent liquid spills when sealing soups or sauces, maintaining a clean workspace and reducing product waste.
Compact Tabletop Design
Measuring 950x400x660mm, this unit fits on standard stainless steel prep tables without occupying excessive space. The 45kg weight keeps the machine stable during operation, reducing vibration and noise. Its metal construction withstands daily use in commercial packaging zones and resists wear from frequent cleaning.
Why Choose Us?
The TT-Z506 provides a reliable sealing solution for restaurants and food manufacturers requiring professional packaging. By integrating sealing, conveying, and printing, it prepares food products for retail sale or long-term storage. This machine handles various bag materials and sizes, supporting consistent workflow in busy production environments.
