Description

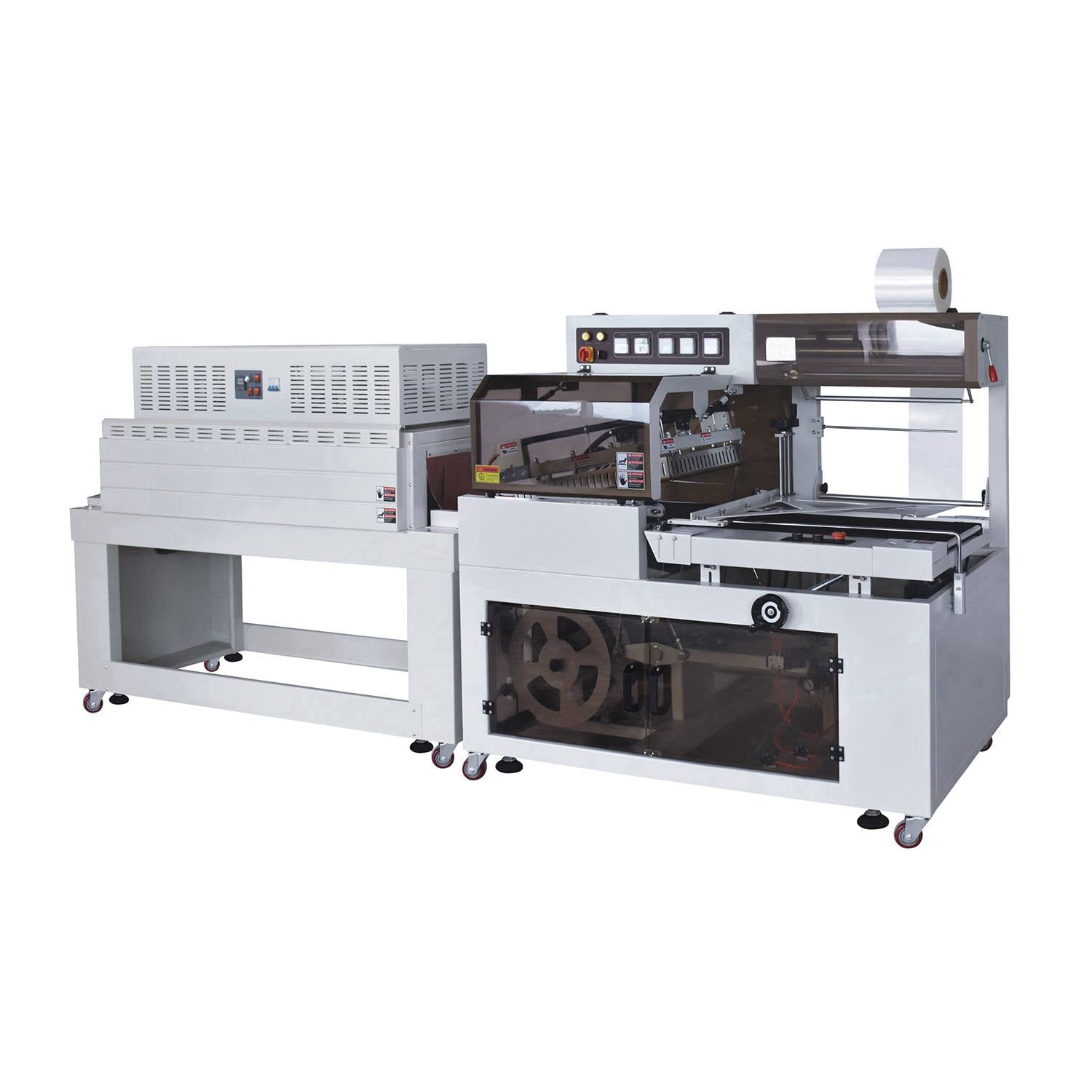

This combined sealing and shrink packaging system streamlines the final stage of production lines. It secures products against dust and moisture while creating a tight finish for retail display. Designed for medium to high-volume operations, this setup handles sealing and shrinking in a continuous workflow, suitable for food processing plants and central kitchens.
| Model | FQL-450A (TT-Z306) |
| Power | 1.35 KW |
| Voltage | 220V 50Hz |
| Capacity | 15~30 BAGS/MIN |
| Seal Size | 560×440 MM |
| Max Packaging Height | 135 MM |
| Machine Dimensions | 1650×920×1450 MM |
| Machine Weight | 300 KG |
| Air Pressure | 0.5 MPa |
| Model | BS4522LN (TT-Z301F) |
| Power | 15 KW |
| Voltage | 380V 50Hz |
| Shrink Oven Size | 1600×450×220 MM |
| Conveyor Speed | 0~10 M/MIN, Adjustable |
| Conveyor Loading | 30 KG |
| Shrink Film | PVC, POF, PP |
| Machine Dimensions | 2000×700×1370 MM |
| Machine Weight | 180 KG |
High-Speed Sealing Operation

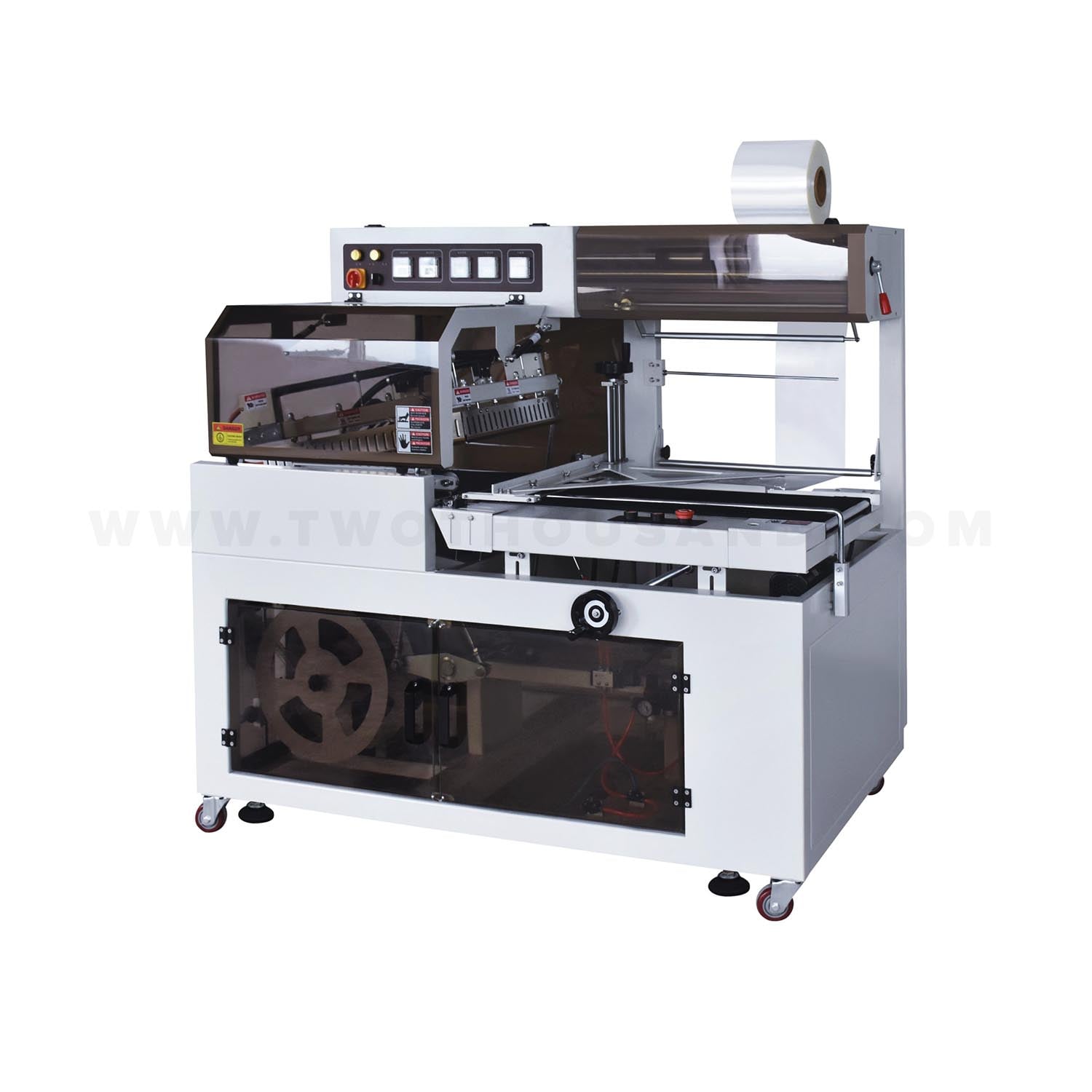

The FQL-450A sealing unit processes between 15 and 30 bags per minute, keeping pace with demanding production schedules. Its pneumatic system, operating at 0.5 Mpa, applies consistent pressure to create airtight seals on every cycle. This reliability prevents open packages and reduces waste during the packing of food trays, hardware, or boxed goods.
Adjustable Shrink Tunnel Control
The BS4522LN shrink tunnel features a variable conveyor speed of 0 to 10 meters per minute. Operators adjust the speed to match the heating requirements of PVC, POF, or PP films. The 15 KW heating elements maintain stable temperatures within the 1600mm long tunnel, ensuring films shrink tightly around the product without burning or bubbling.
Accommodates Varied Dimensions
With a sealing area of 560×440 mm and a maximum packaging height of 135 mm, this system accepts a wide range of product dimensions. The shrink tunnel entrance measures 450×220 mm, allowing passage for items ranging from small sauce bottles to larger gift boxes. This adaptability supports facilities that package multiple product lines on a single machine.
30KG Conveyor Load Capacity
The conveyor supports loads up to 30 kg, making it suitable for heavier bulk packs or dense food items. The combined weight of the machines anchors the station firmly to the floor, minimizing vibration during operation. This stability protects internal components and ensures smooth transfer from the sealer to the shrink tunnel.
Why Choose Us?
The FQL-450A and BS4522LN combination provides a complete packaging solution for commercial facilities. By integrating cutting, sealing, and shrinking into one process, it prepares goods for storage or shipment. This system protects inventory integrity while maintaining a steady output flow.
