Description

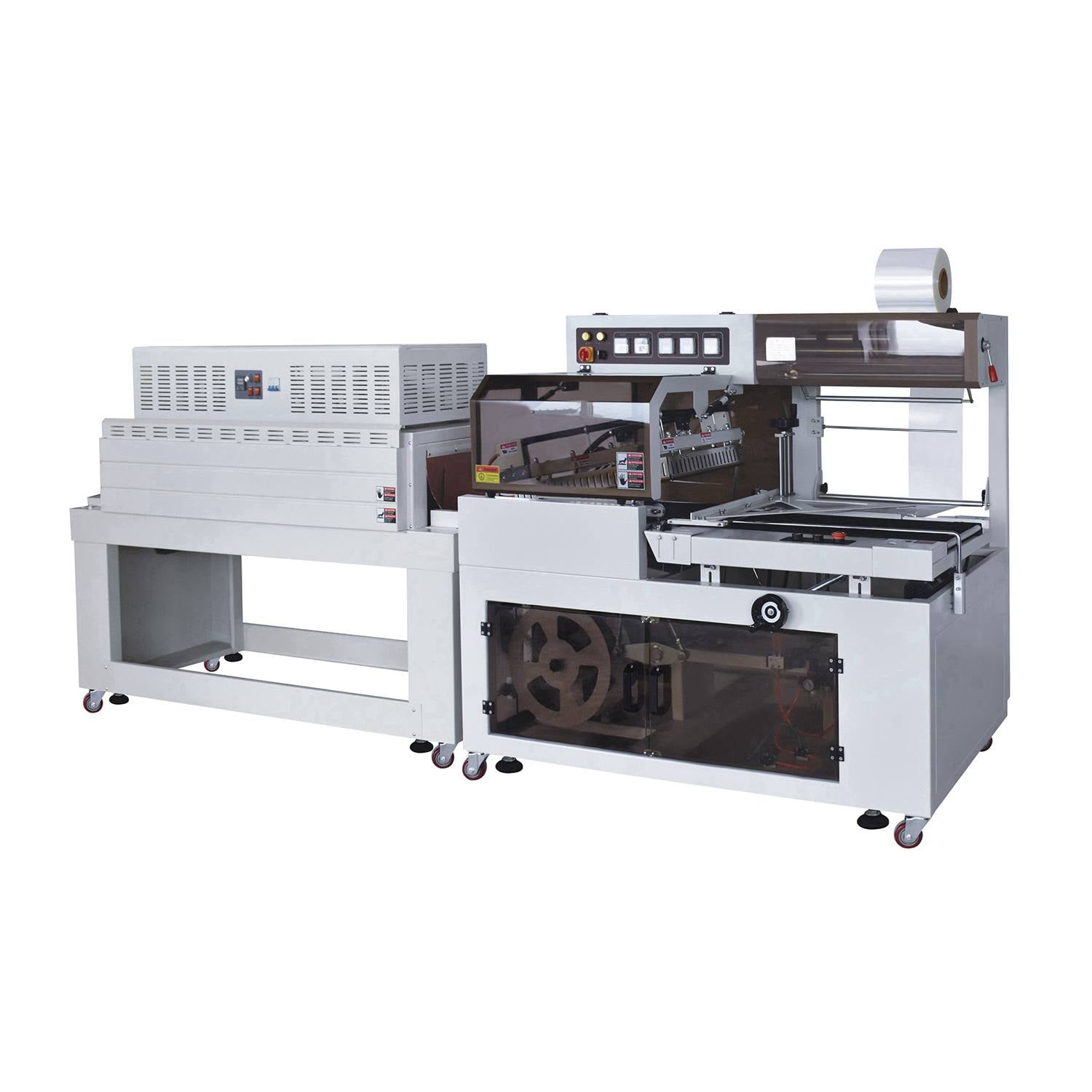

This packaging system combines the BF-450 Side Sealer and BS4522N Shrink Tunnel to wrap food products securely. It handles continuous sealing for items of unlimited length, making it suitable for baguettes, vegetable trays, or boxed meals. The system protects food from contamination while creating a professional finish for retail display or storage.
| Model | BF-450(TT-Z306B) |
| Power | 1.35 KW |
| Voltage | 220V50HZ |
| Capacity | 15 M/MIN |
| Seal Size | unlimited Length, width 450 MM |
| Highest Size of Packaging | 180 MM |
| Size | 1650×920×1450 MM |
| Weight | 300 KG |
| Air Pressure | 0.5 MPa |
| Model | BS4522N(TT-Z301E) |
| Power | 12 KW |
| Voltage | 380V50HZ |
| Shrink Oven Size | 1200x450x220 MM |
| Converyor Speed | 0~10 M/MIN%2C Adjustable |
| Converyor Loading | 30 KG |
| Shirk Film | PVC、POF、PP |
| Size | 1600×700×1370 MM |
| Weight | 160 KG |

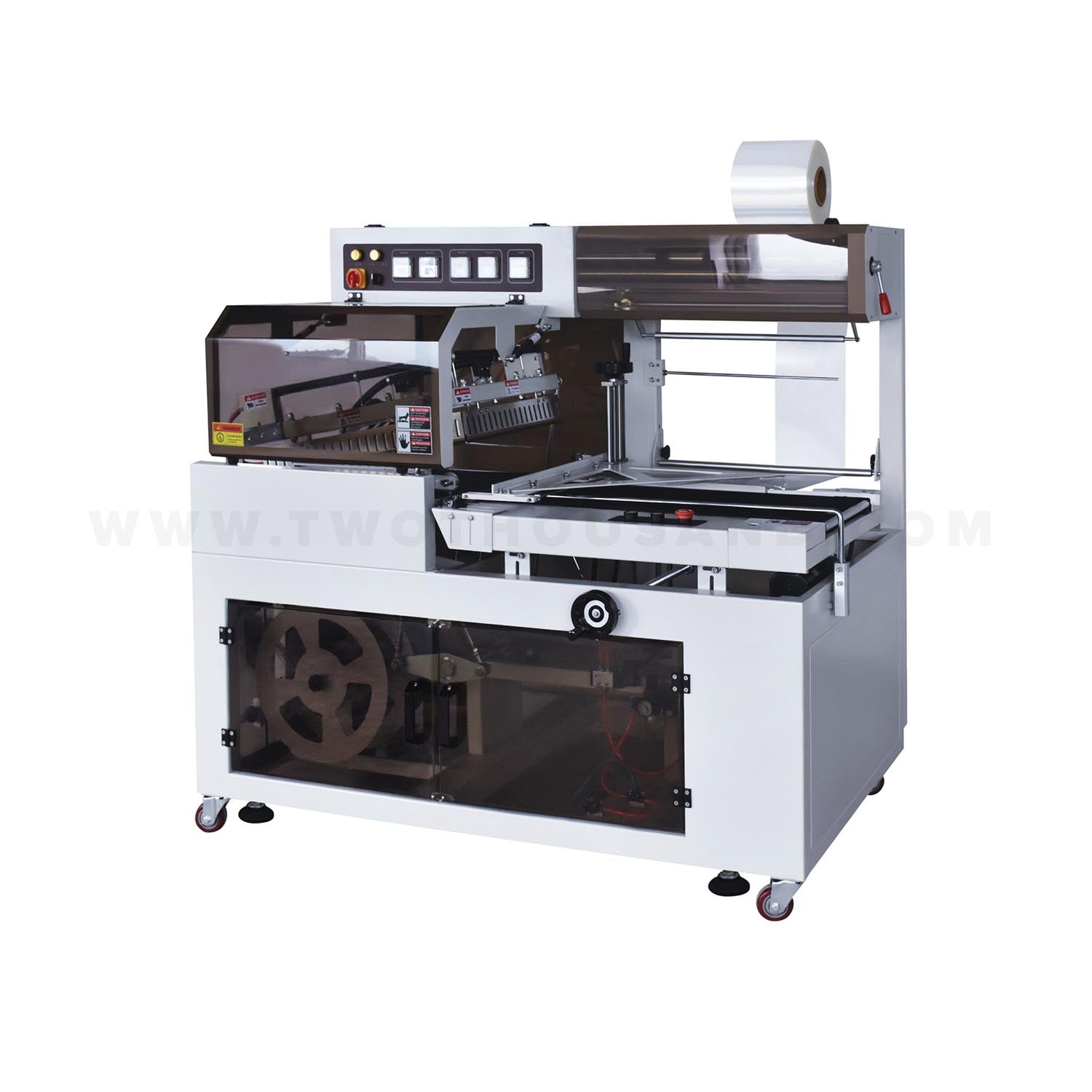

Continuous Side Sealing
The BF-450 utilizes a side-sealing mechanism that processes products of unlimited length. This design accommodates long items like French baguettes, cucumbers, or stacked trays without interruption. The machine maintains a speed of 15 meters per minute, keeping pace with high-volume production lines in central kitchens or food processing plants.

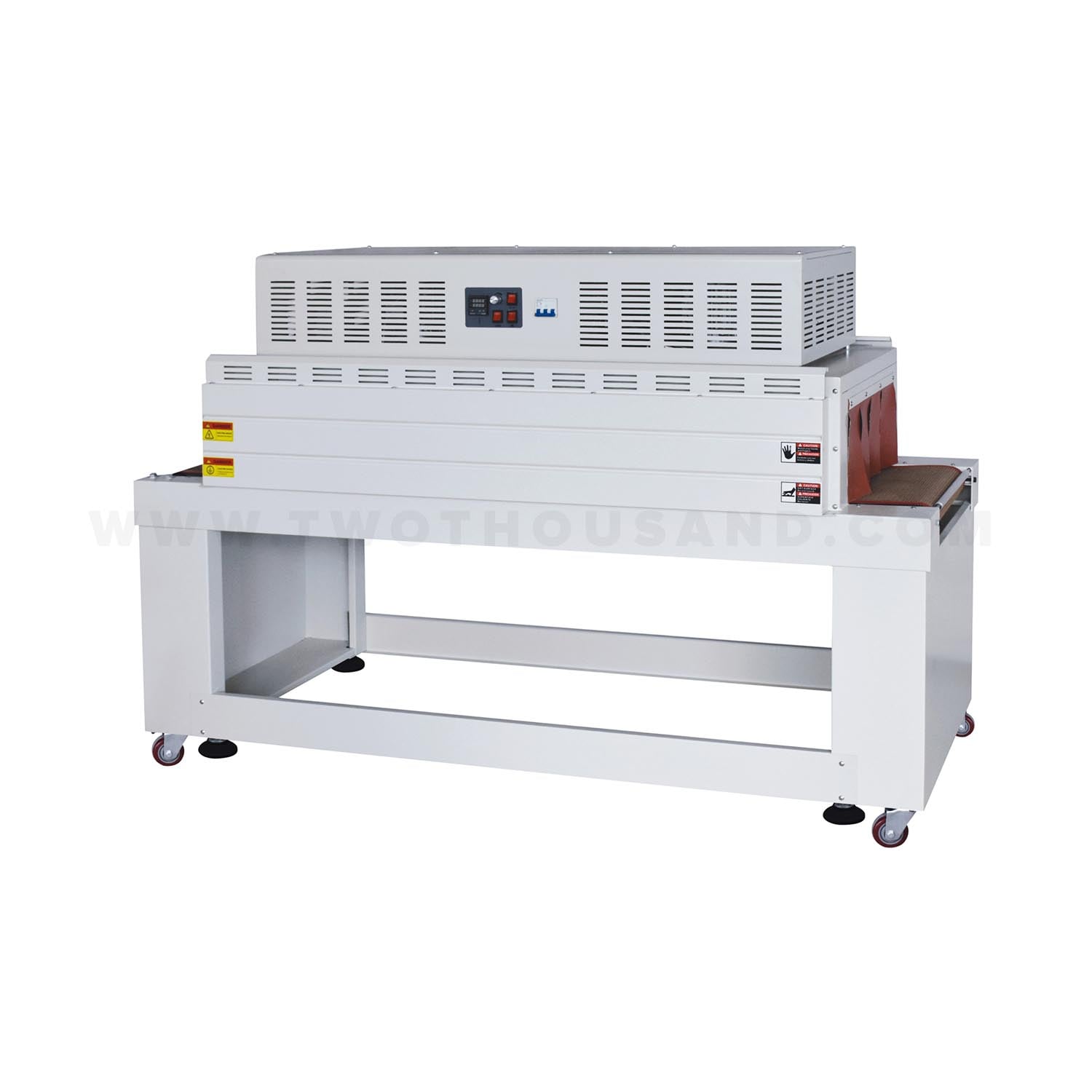

High-Power Thermal Circulation
The BS4522N Shrink Tunnel operates on 12 KW power to generate consistent heat within the 1200mm chamber. Operators adjust the conveyor speed between 0 and 10 meters per minute to match the melting point of PVC, POF, or PP films. This control ensures the film shrinks tightly around the product without burning or leaving loose edges.
Heavy-Duty Conveyor System
Designed for substantial loads, the conveyor supports up to 30 kg, allowing the packaging of heavy bulk items like frozen meat blocks or large cheese wheels. The system accepts products up to 180mm high for sealing and passes them through a 220mm high tunnel, providing clearance for stacked containers or tall baked goods.
Pneumatic Cutting Precision
The sealing unit relies on 0.5 MPa air pressure to drive the cutting blade with consistent force. This pneumatic action creates clean seals that resist tearing during transport. The combined weight of 460 kg anchors the machinery, reducing vibration and maintaining alignment during continuous shifts in busy packing areas.
Why Choose Us?
This sealing and shrinking combination streamlines the final stage of food production. By automating the wrapping process, it reduces manual labor and ensures every package meets hygiene standards. Kitchen managers rely on this system to prepare large quantities of food for safe storage or immediate distribution.
