Description

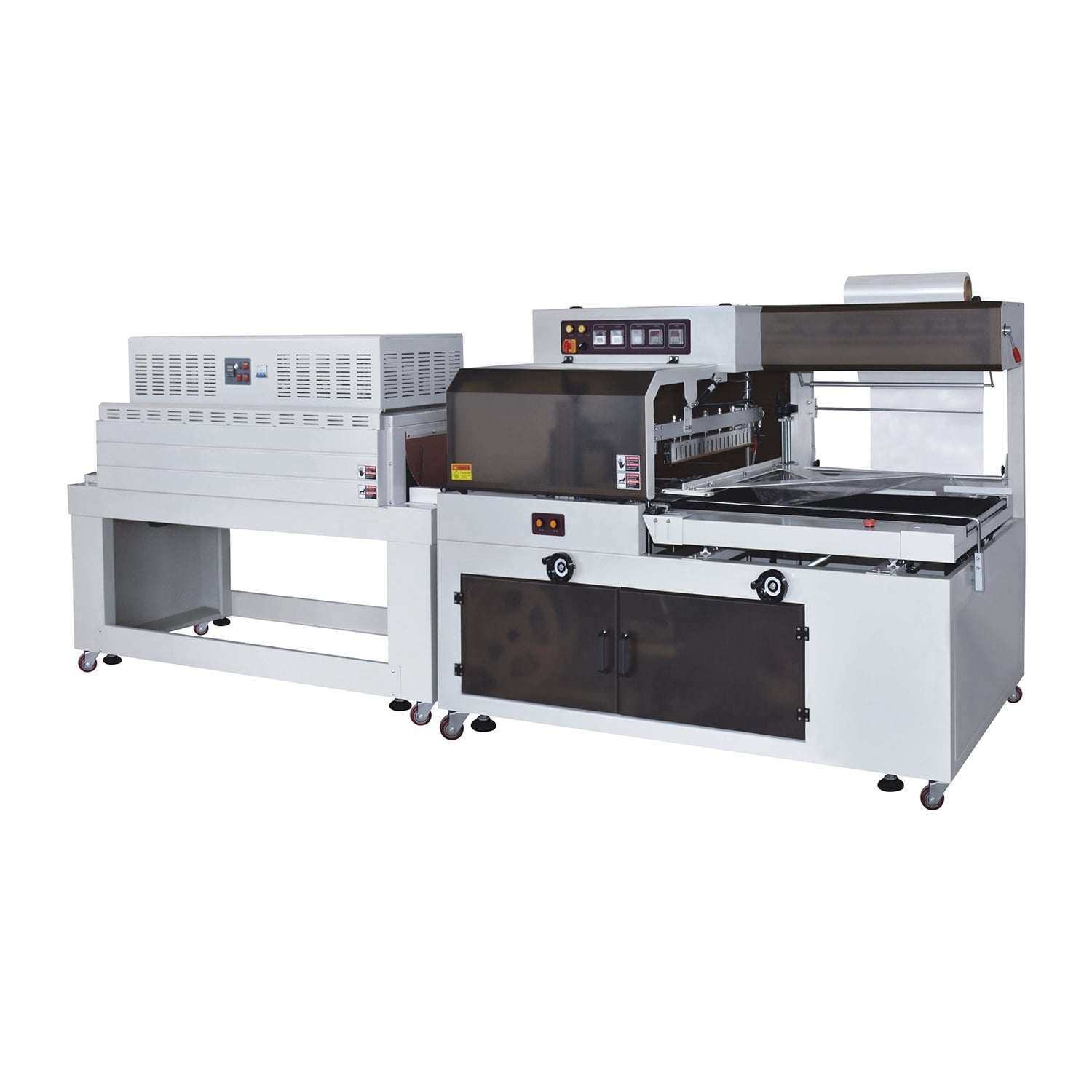

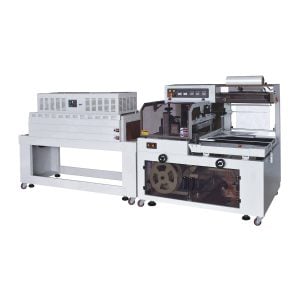

This packaging line combines the BF-650 Side Sealer and BS6530LN Shrink Tunnel to wrap products of unlimited length. It secures food trays, boxes, and long produce items in tight protective film. The system operates continuously, allowing central kitchens and production facilities to maintain a steady packing flow without manual interruption.
| Model | BF-650(TT-Z306D) |
| Power | 1.35 KW |
| Voltage | 220V50HZ |
| Capacity | 15 M/MIN |
| Seal Size | unlimited Length, width 650 MM |
| Highest Size of Packaging | 220 MM |
| Size | 1650×1120×1550 MM |
| Weight | 400 KG |
| Air Pressure | 0.5 MPa |
| Model | BS6530LN(TT-Z301H) |
| Power | 15 KW |
| Voltage | 380V50HZ |
| Shrink Oven Size | 1600x650x300 MM |
| Converyor Speed | 0~10 M/MIN%2C Adjustable |
| Converyor Loading | 30 KG |
| Shirk Film | PVC、POF、PP |
| Size | 2000×900×1450 MM |
| Weight | 220 KG |
Continuous Side Sealing

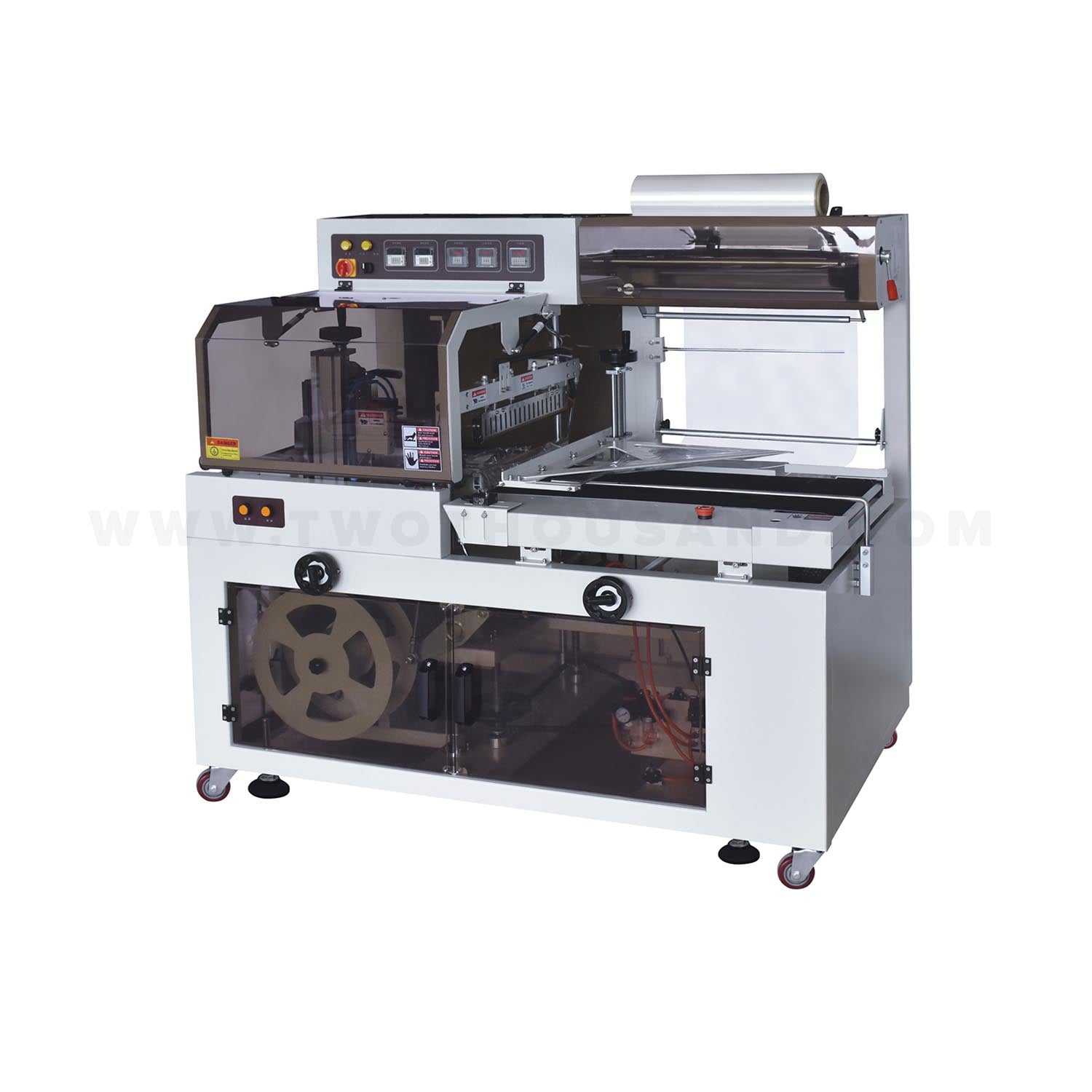

The BF-650 employs a side-sealing blade that processes items of unlimited length. This configuration handles long food products like baguettes, celery stalks, or stacked multipacks. The conveyor moves items past the blade at 15 meters per minute, creating a secure side seal without pausing for individual cuts, which maintains momentum on the production line.
High-Power Thermal Circulation

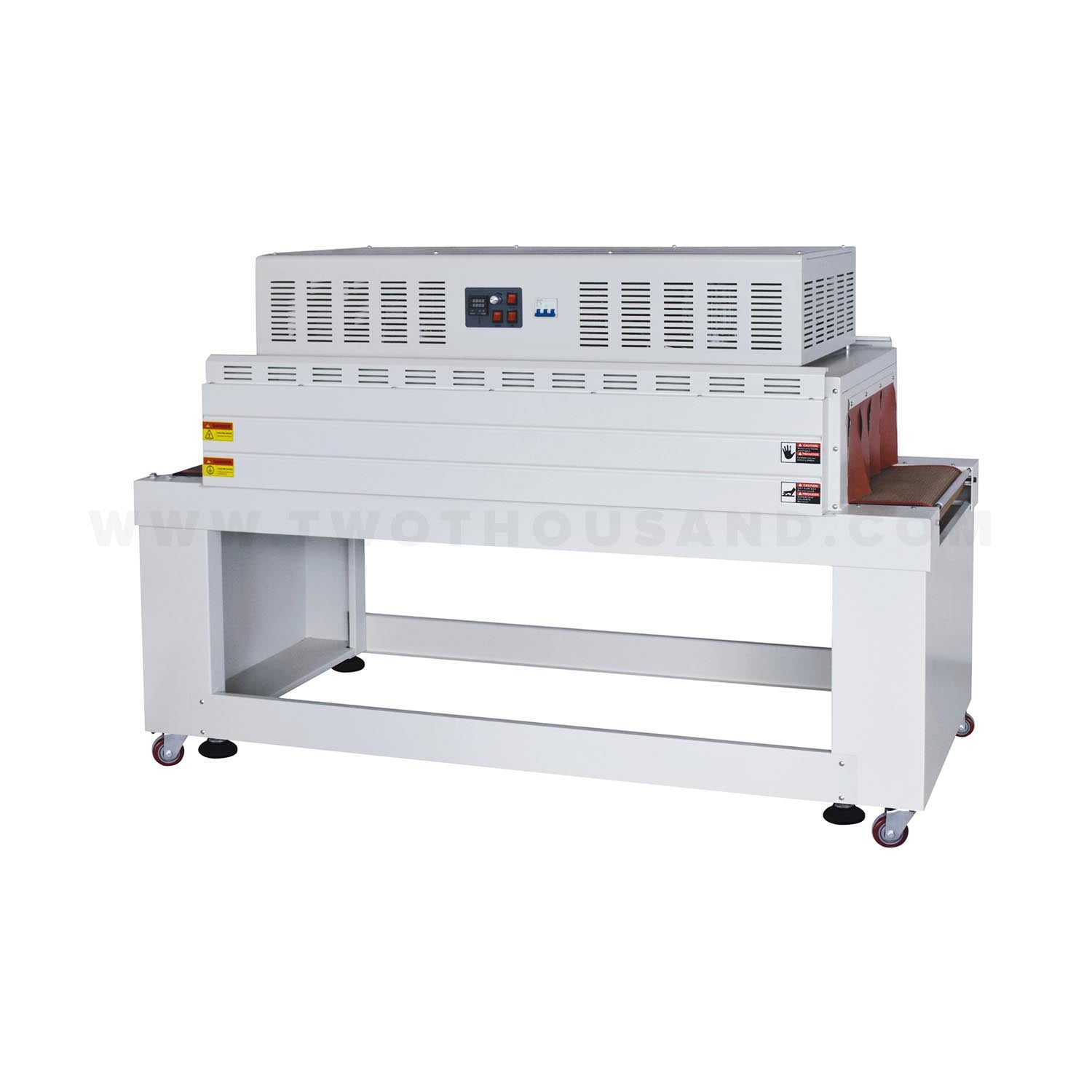

The BS6530LN tunnel uses 15KW of power to circulate hot air evenly across the 1600mm chamber. This consistent heat shrinks PVC, POF, or PP films tightly around irregular shapes, such as whole chickens or vegetable baskets. The uniform airflow prevents hot spots, ensuring the film shrinks smoothly without melting or tearing the plastic.
Heavy-Duty Conveyor System
Designed for bulk operations, the conveyor supports loads up to 30kg. It transports heavy crates of beverages or large cuts of meat through the heat tunnel with stability. Operators adjust the speed between 0 and 10 meters per minute to synchronize with the sealing unit, allowing precise control over heat exposure based on the film thickness.
Broad Dimensional Capacity
The system accommodates packages up to 650mm wide and 220mm high. This clearance fits standard catering trays, pizza boxes, and large produce crates. The adjustable guides align these items correctly before they enter the tunnel, reducing the risk of jams or misalignment during high-volume shifts.
Why Choose Us?
The BF-650 and BS6530LN system automates the sealing and shrinking process for diverse food items. It protects products from external contamination while creating a clean, tight presentation for transport or display. This machinery suits food processing facilities that require speed, reliability, and the flexibility to wrap items of varying sizes.
