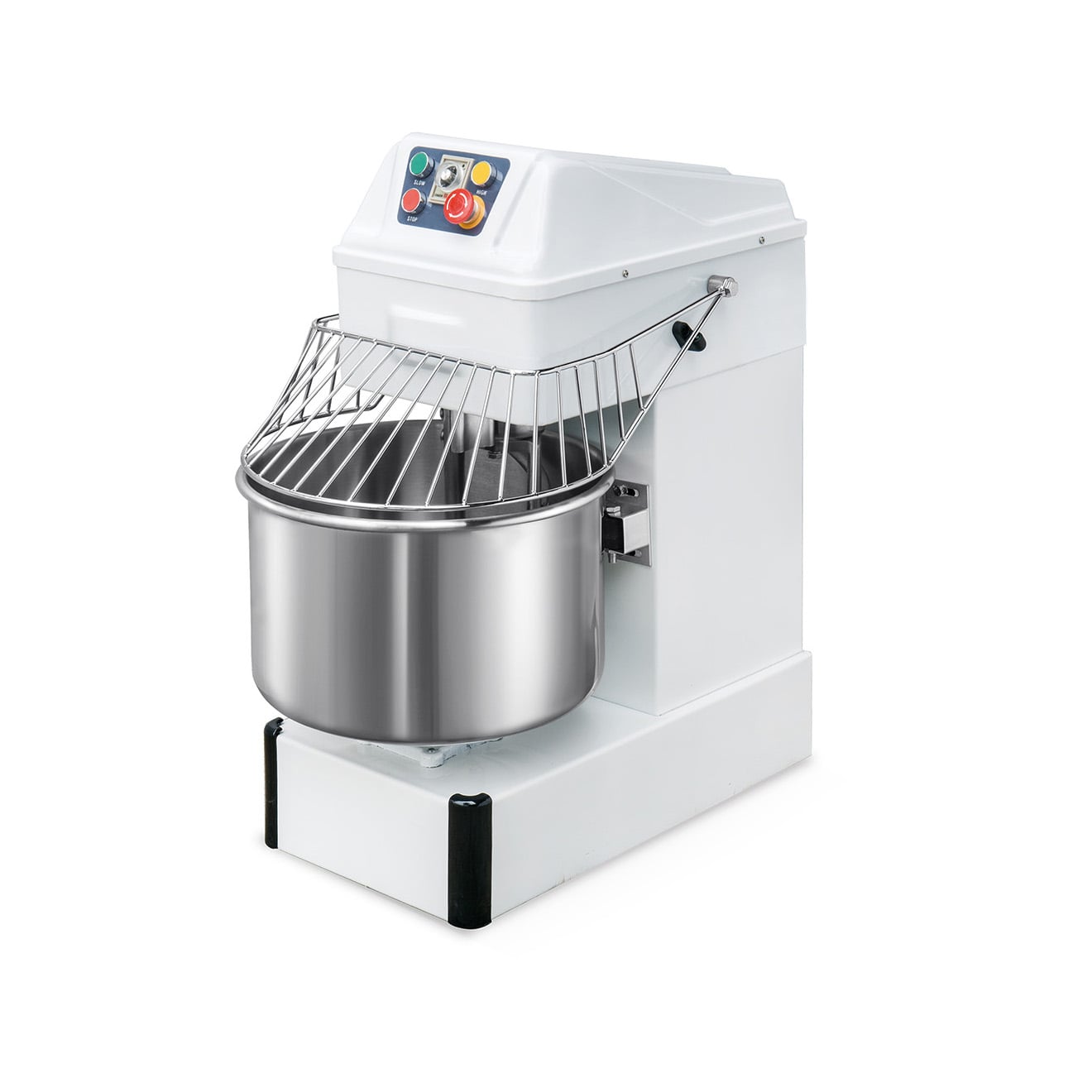

45L Belt and Chain Transmission ETL Commercial Spiral Dough Mixer HS40S

Click to Zoom Commercial Spiral Dough Mixer HS40S - Main View

Back to Dough Mixers

Previous / Next

< >

Bowl: 45 L
Flour Capacity: 16 KG
Dimensions: 800x480x970 MM
Minimum Capacity: 2.5KG DRY FLOUR, 1.25KG WATER

ETL etl

Description

Details

Model: HS40S
Bowl: 45 L
Flour Capacity: 16 KG
Voltage: 220V/230V/240V/380V
Rated Frequency: 50/60HZ
Power: 3 KW
Speed: 150/198 RPM
Bowl Speed: 15/20 RPM
Weight: 115 KG
Dimensions: 800x480x970 MM
Packing Size: 850x550x1050 MM
Gross Weight: 130 KG
Transmission: Belt and Chain
Dimension of Bowl: Φ450*H300 MM
Minimum Capacity: 2.5KG DRY FLOUR, 1.25KG WATER

Remark: When mixing the dough, put water first and then flour, the amount of water not less than 50% of the weight of dry flour.

New design spiral dough mixer with a moderate price, several kinds of capacity for your choice, is perfect for commercial use to make the pastry, bakeries, or pizza, snack cookies. The best tool for the bakery’s baking and those restaurants with a high demand for popular dough products.

More Details About the Dough Mixer

Control Panel of the Dough Mixer

Side View of the Dough Mixer

Spiral Dough Mixer

Stainless Steel Material

The Front View of the Dough Mixer

The Side View

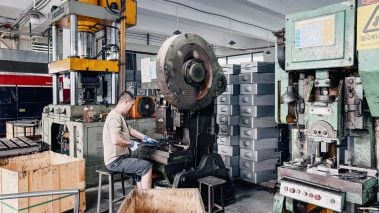

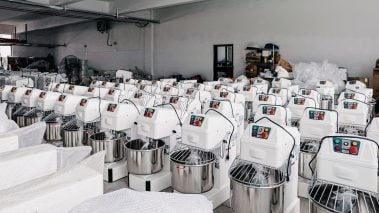

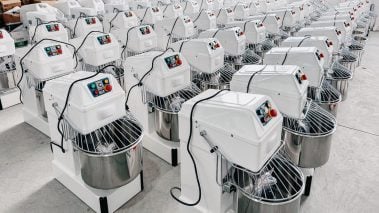

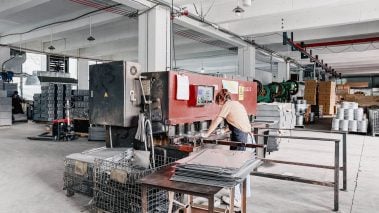

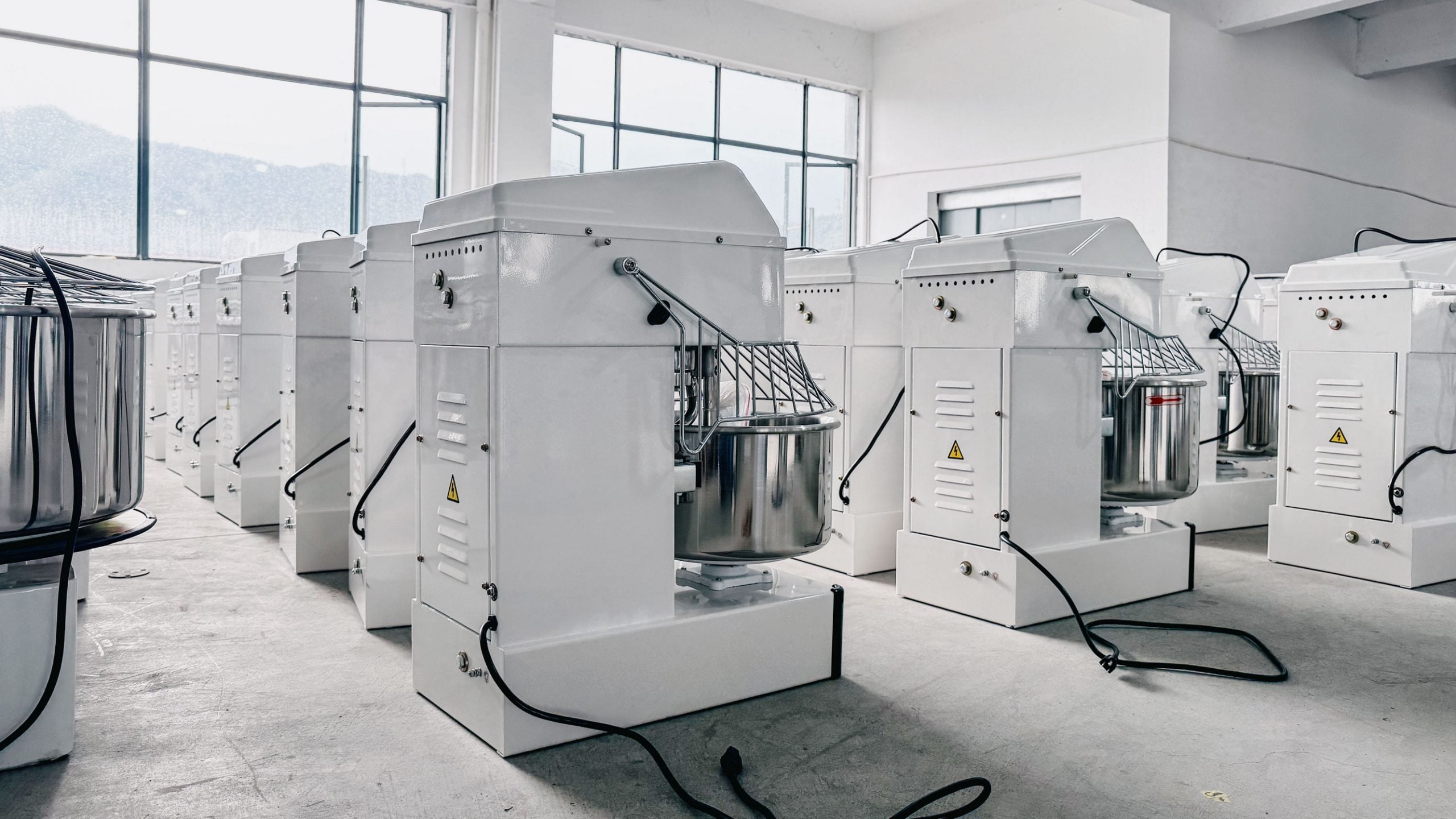

Assembly Line 2

Assembly Line 3

Additional Information

Additional Information

Name	45L Belt and Chain Transmission ETL Commercial Spiral Dough Mixer HS40S
SKU	HS40S
Approval	CE and ETL
Capacity	30-40 liter
Speed	No
Body Material	No
Voltage Phase	Single Phase
Series	S Series
Clearance	No

Videos

User Manual

Explorded Drawing - HS20S HS30S HS40S HS50S HS60S Spiral Mixer Size: (305.95 KB)
User Manual - Dough Mixer - 40 Liters, Belt Transmission, CE, HS40S Size: (139.84 KB)
